I updated the parametric model of ParaTable, and I am currently working on the support frame (the structure) for the table, and the way it adapts to different tabletop configurations. The table overall shape is based on three simple points, as is the support frame. The intital studies are doen in Rhino surface modeler, in which the principe for the frame is set as a static construct. This build-up is then replicated in GenerativeComponents, in which the relation to the three controlling points is set-up, with additional variation is added through variables.

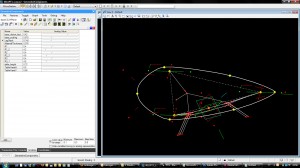

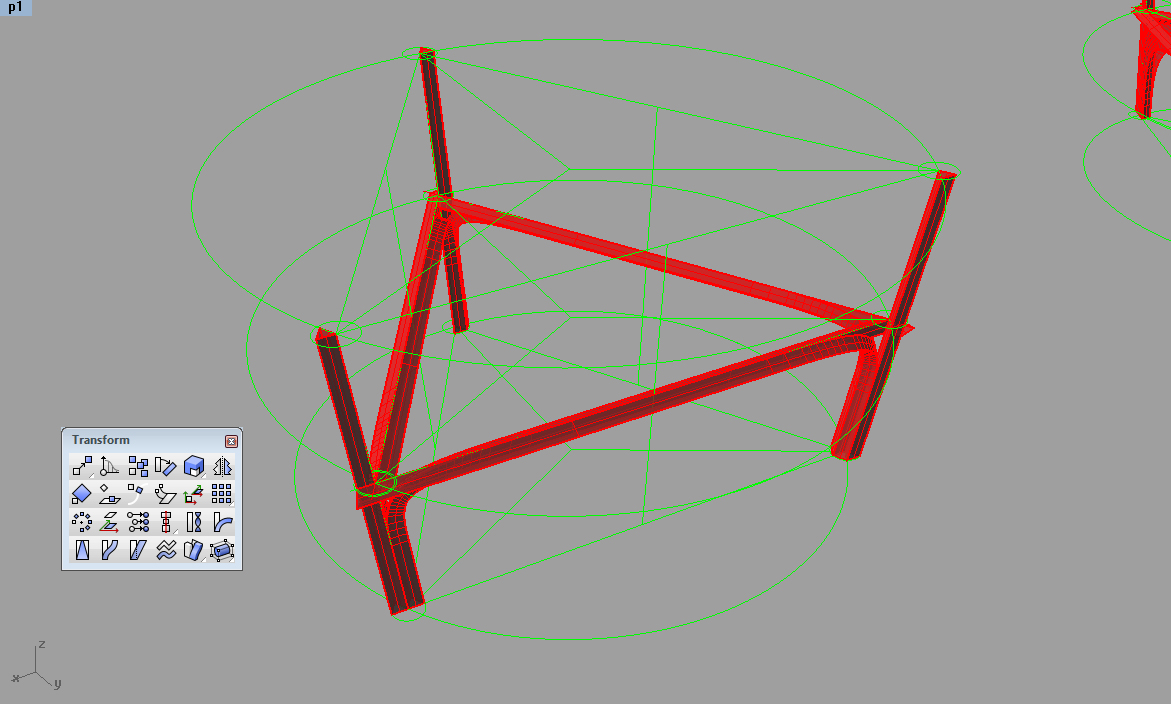

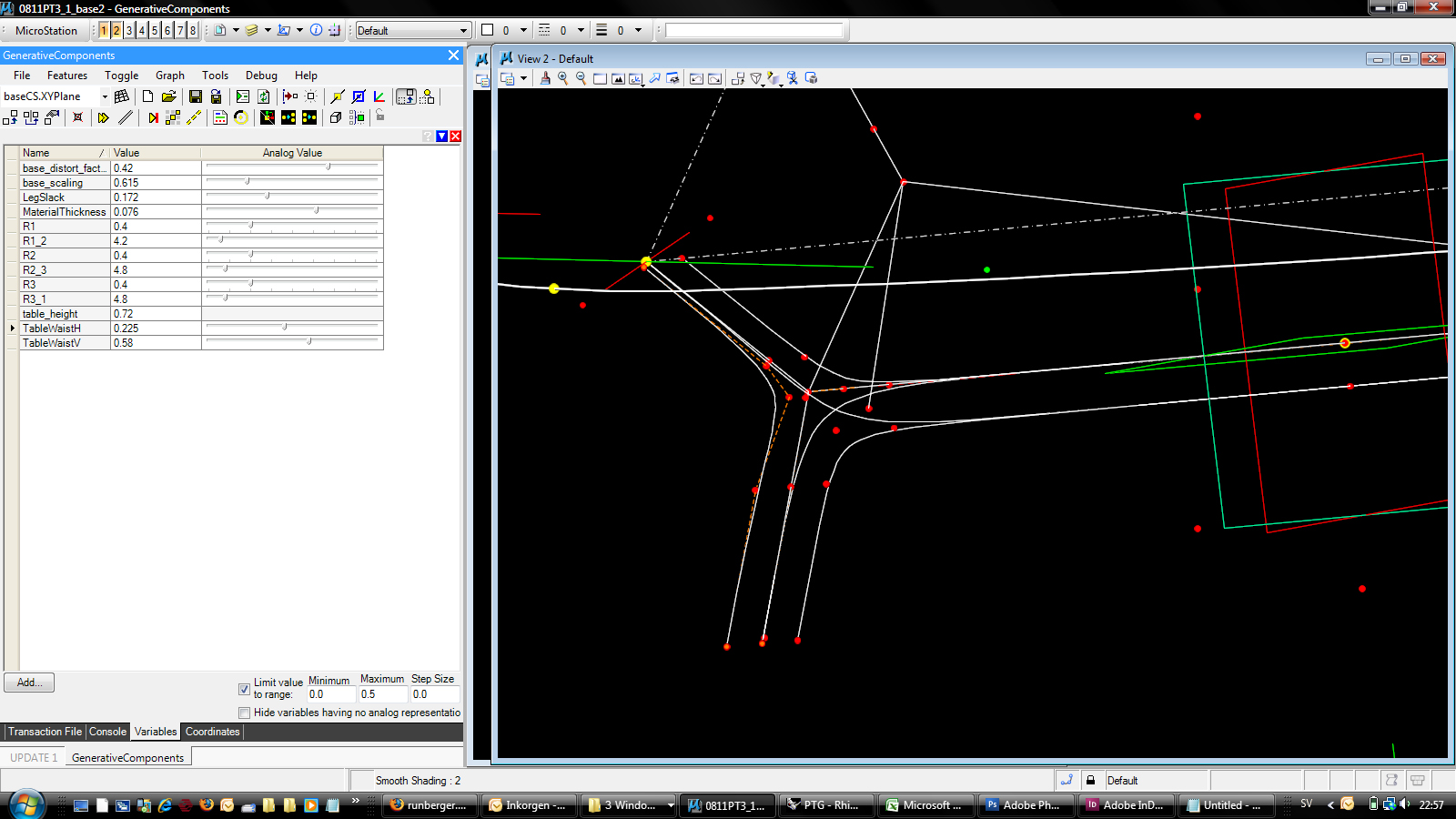

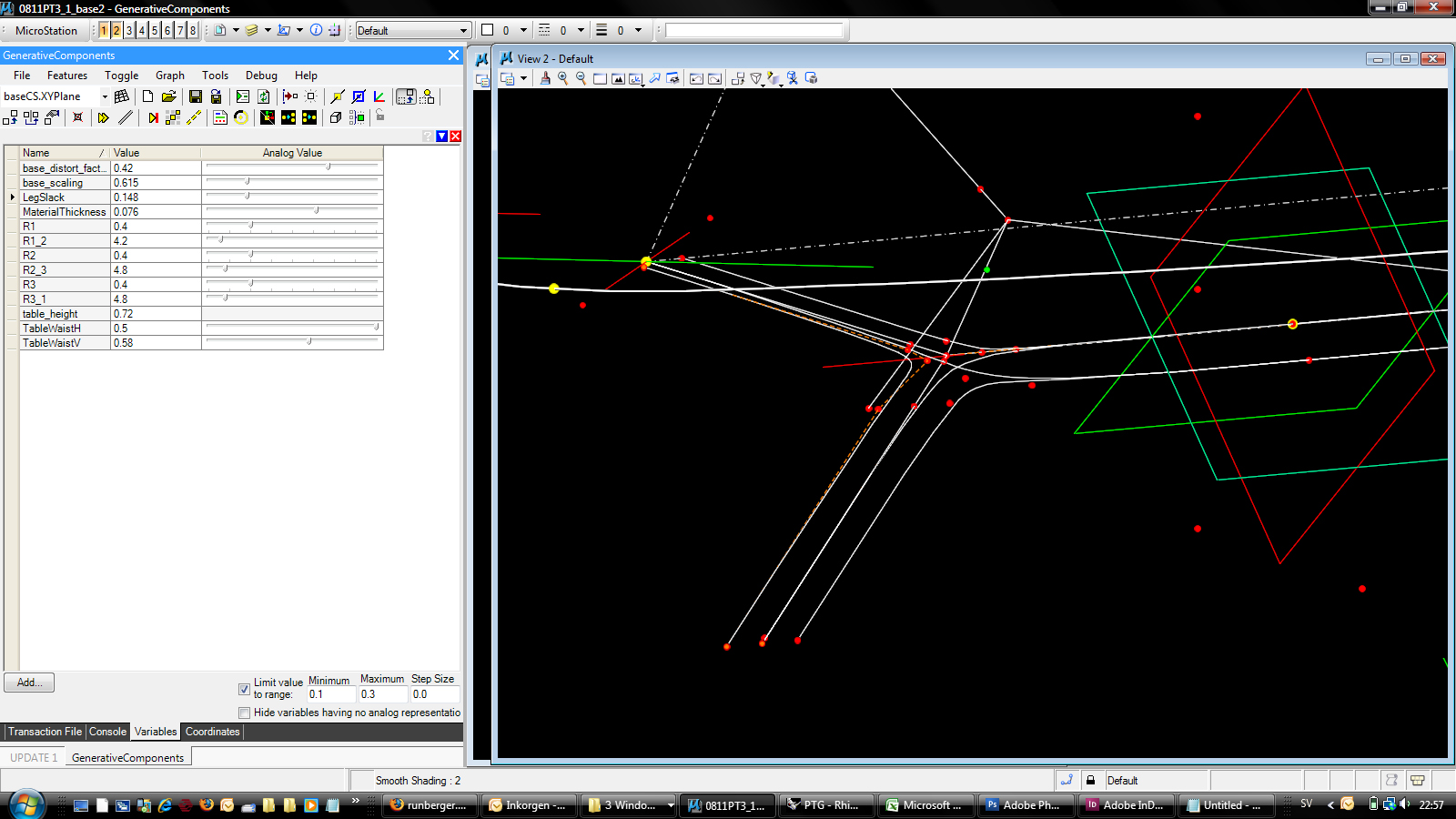

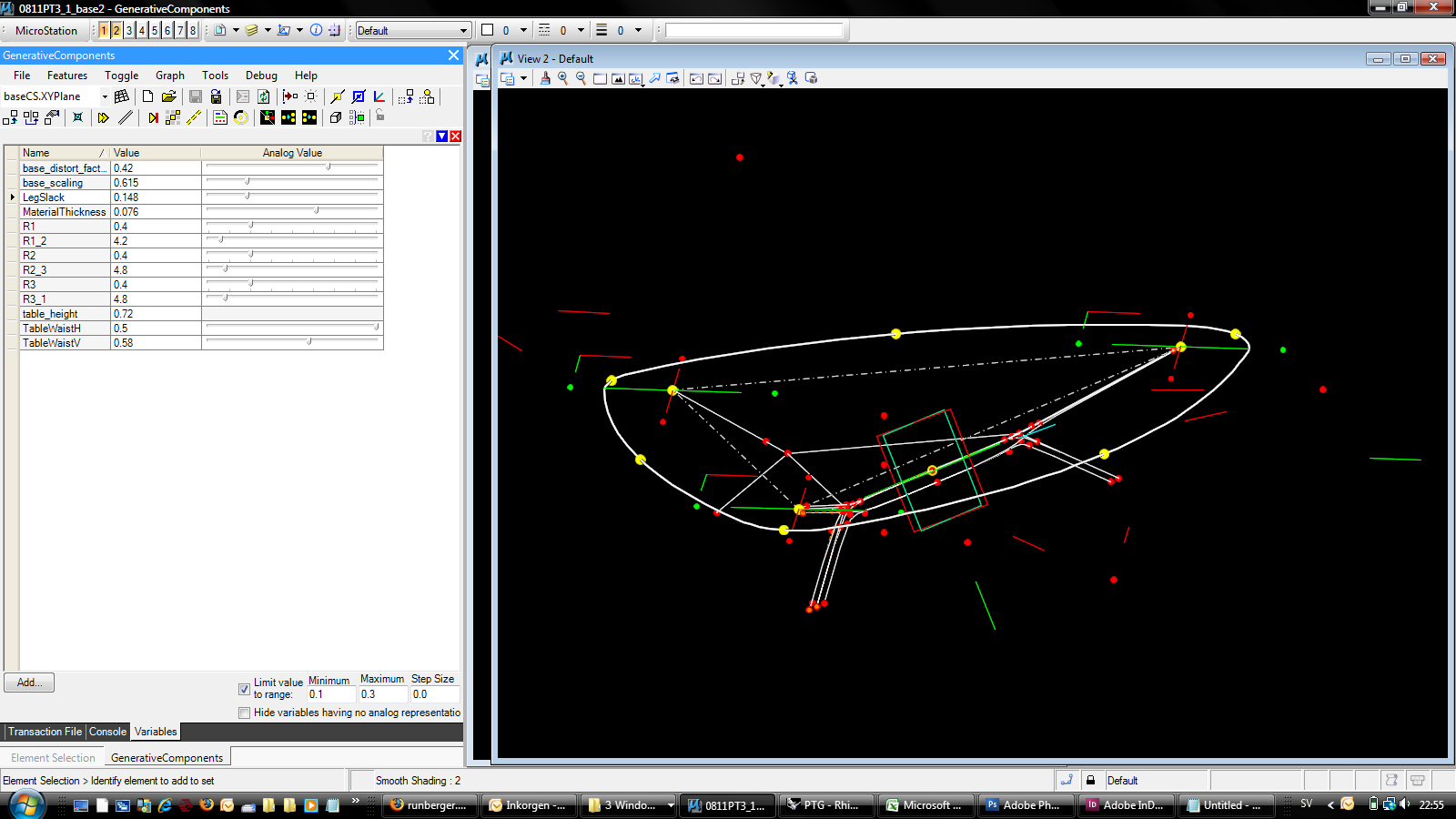

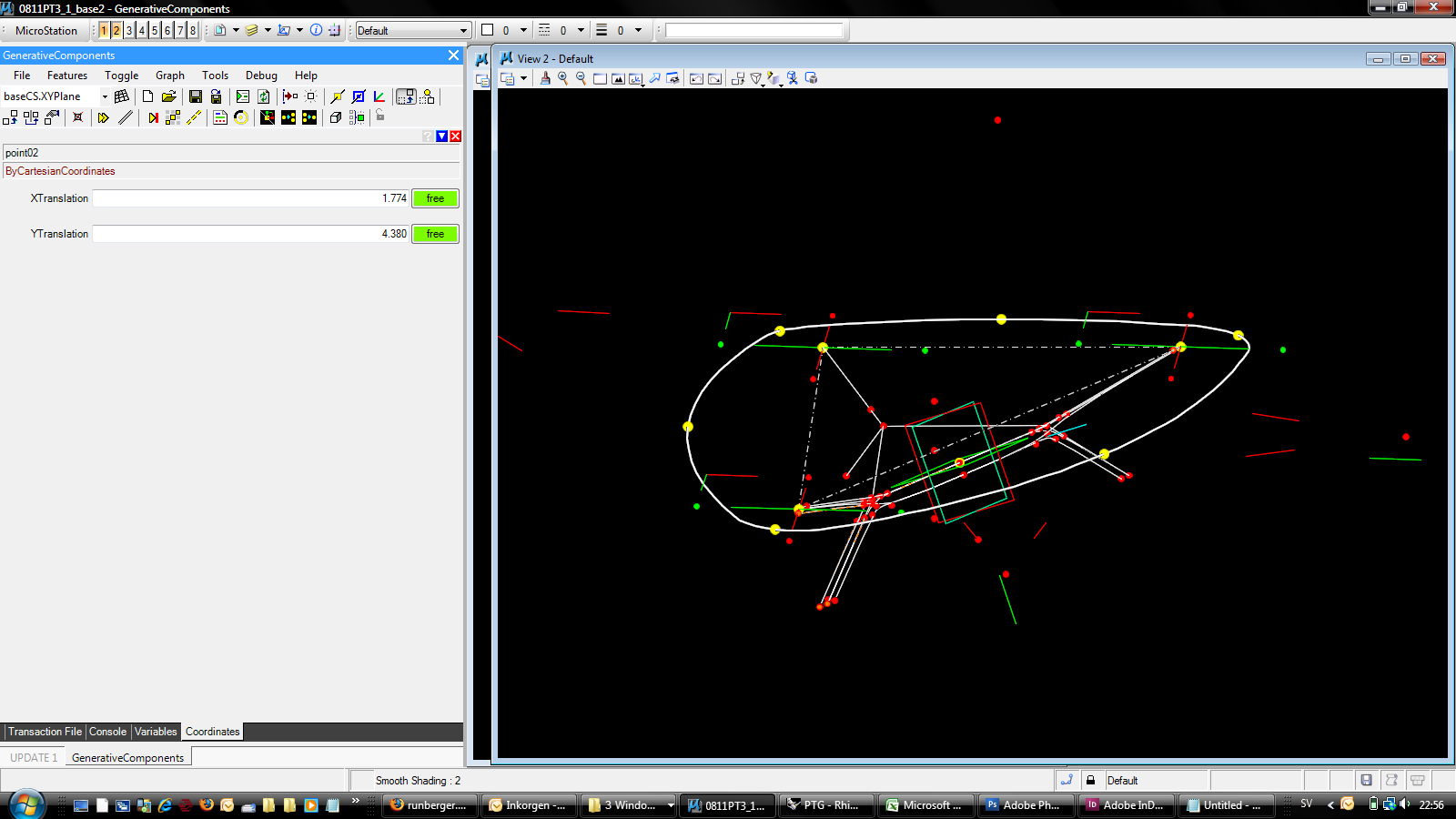

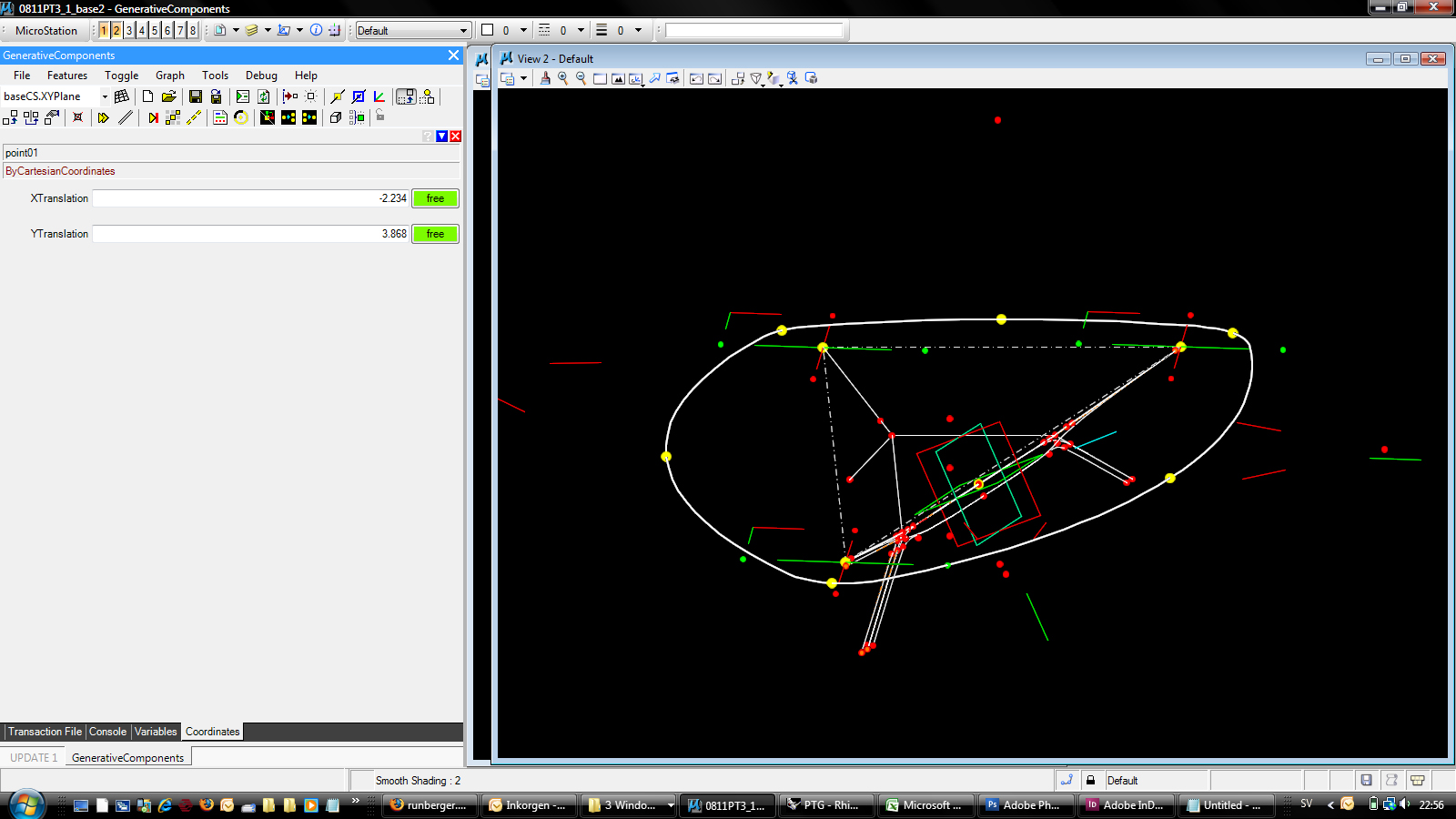

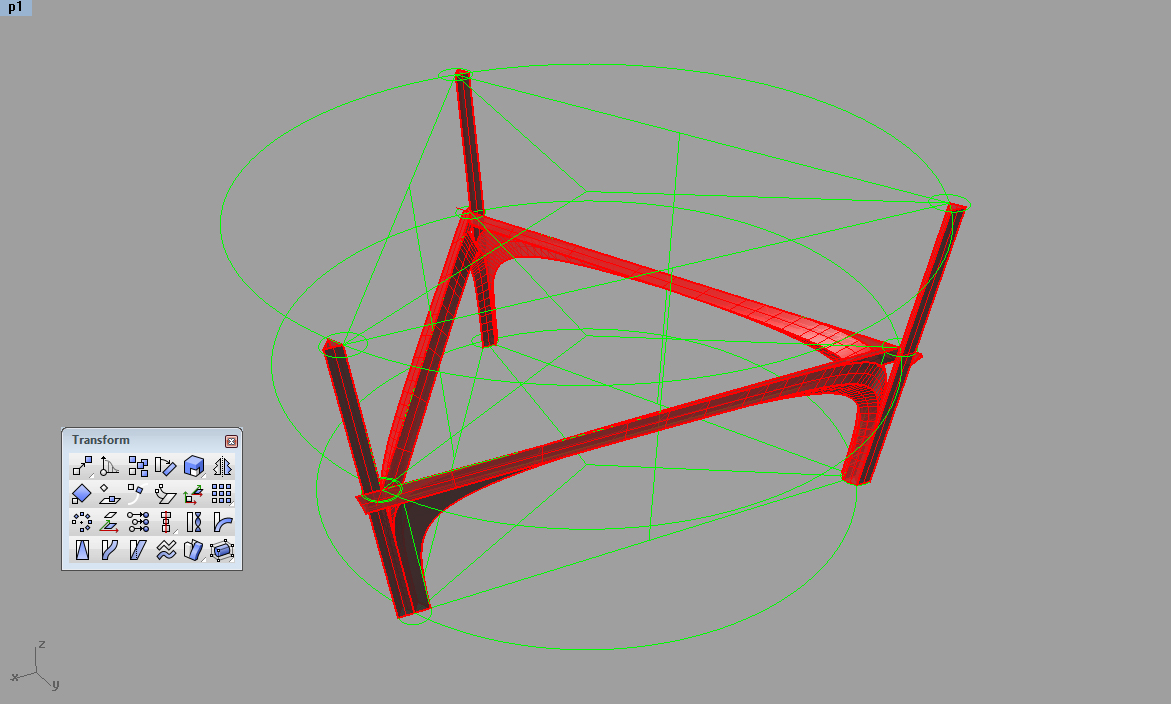

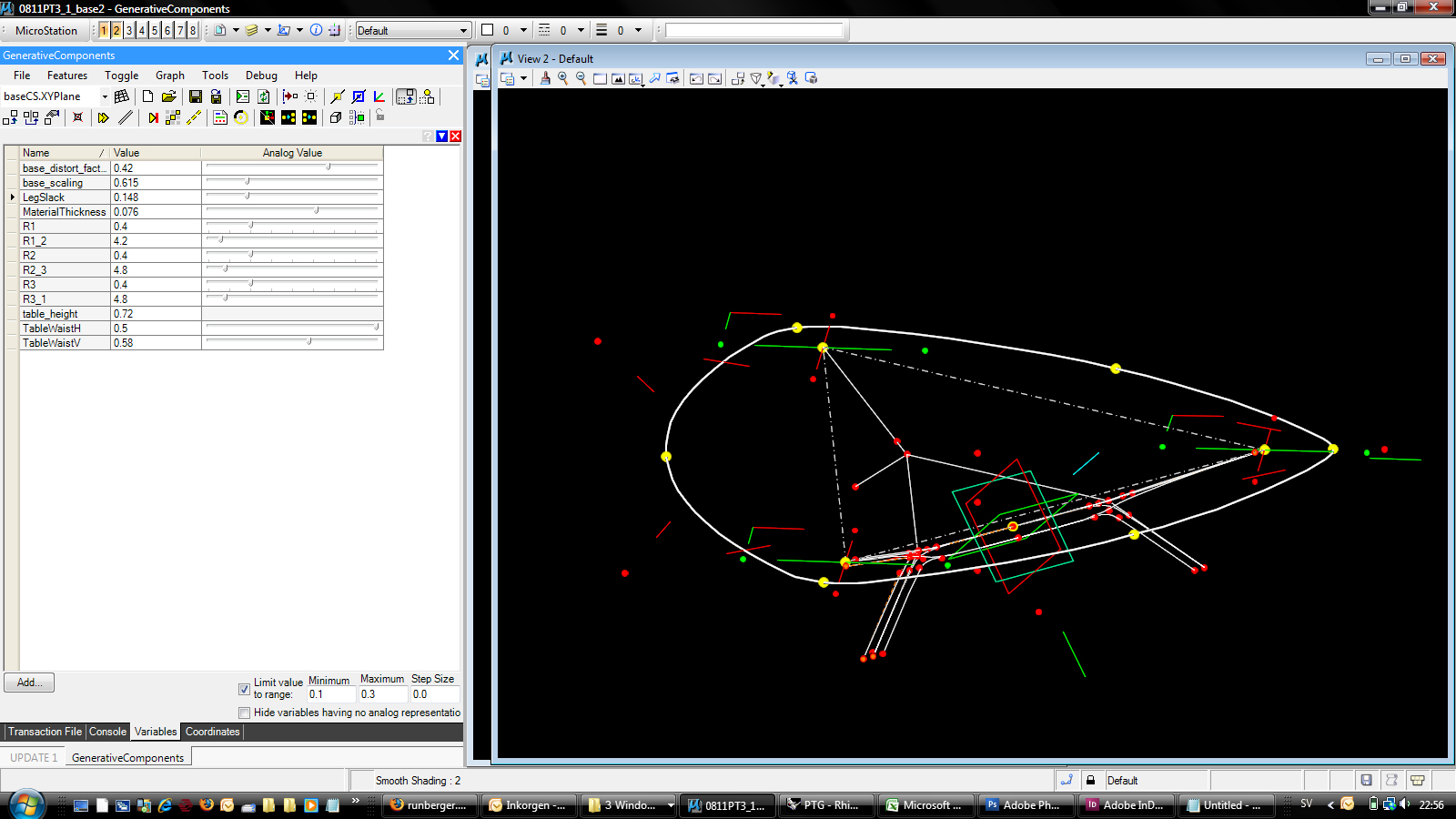

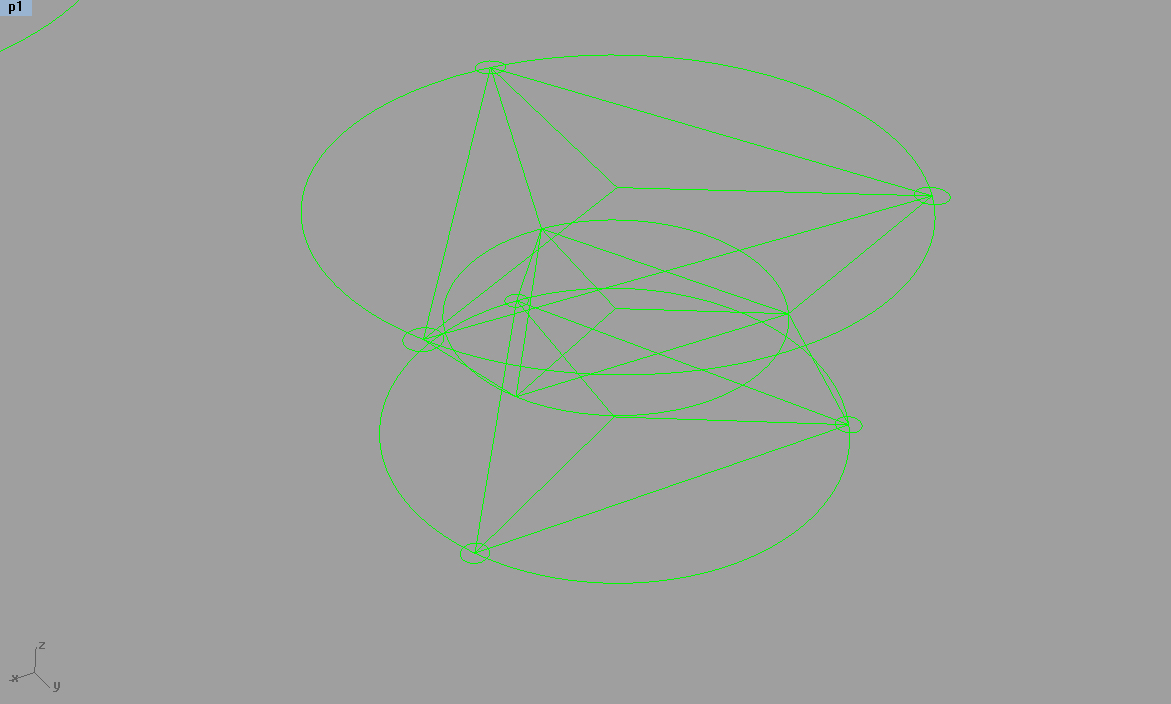

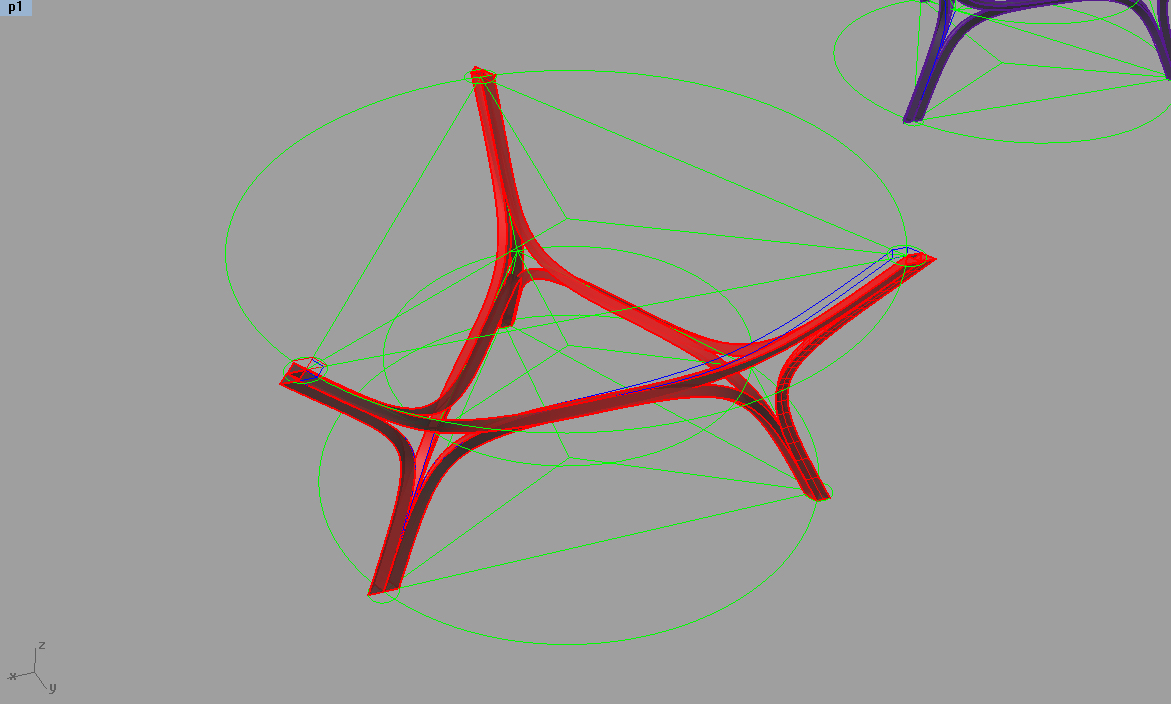

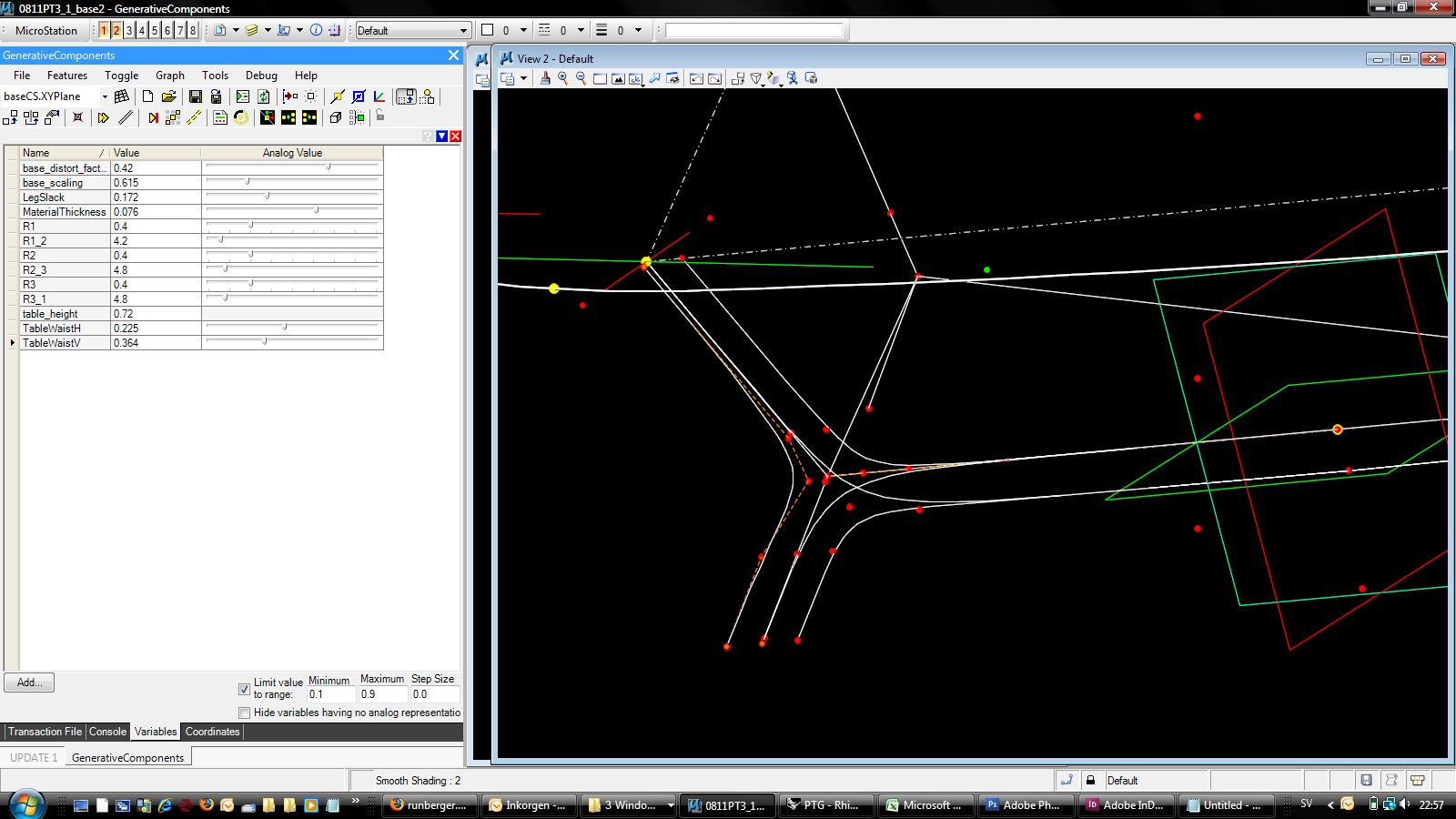

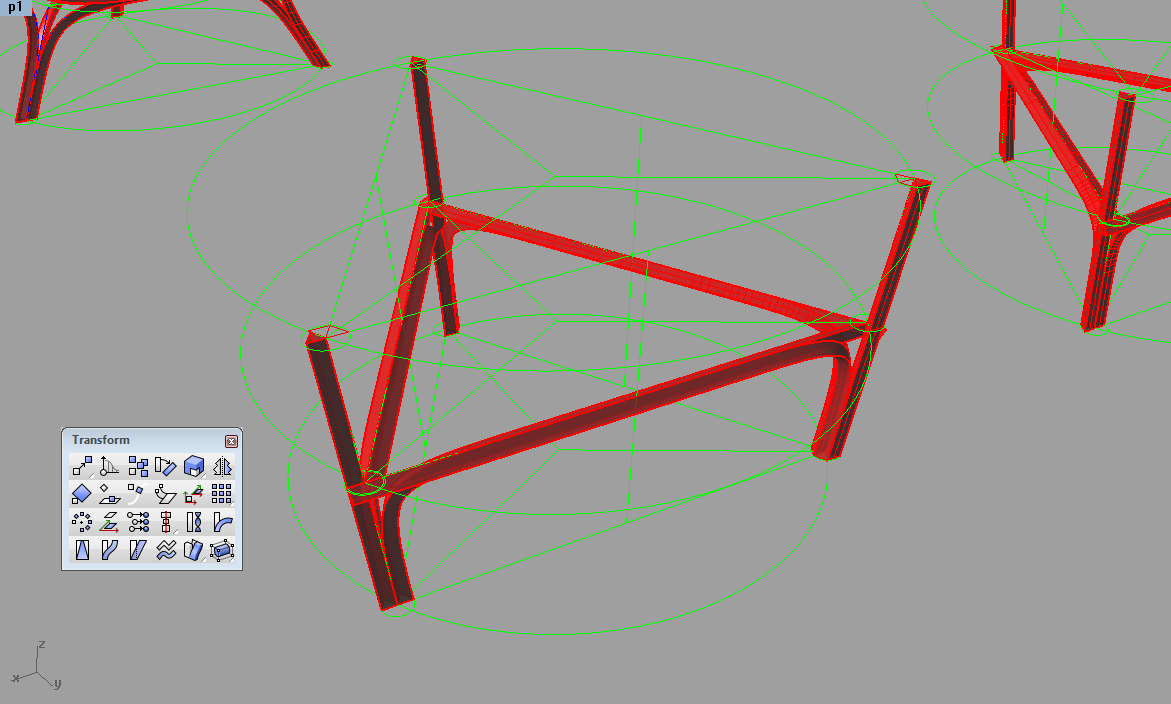

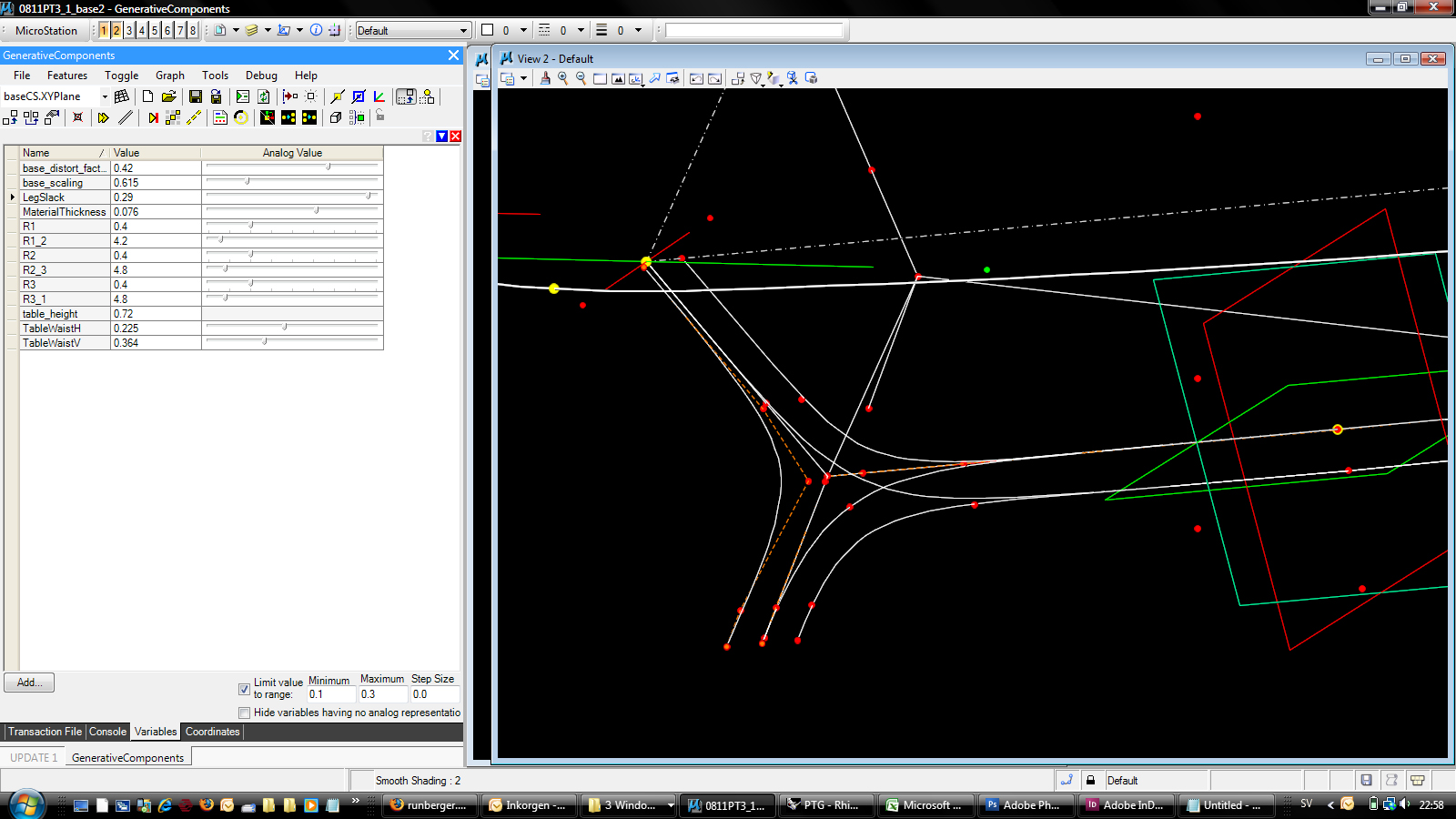

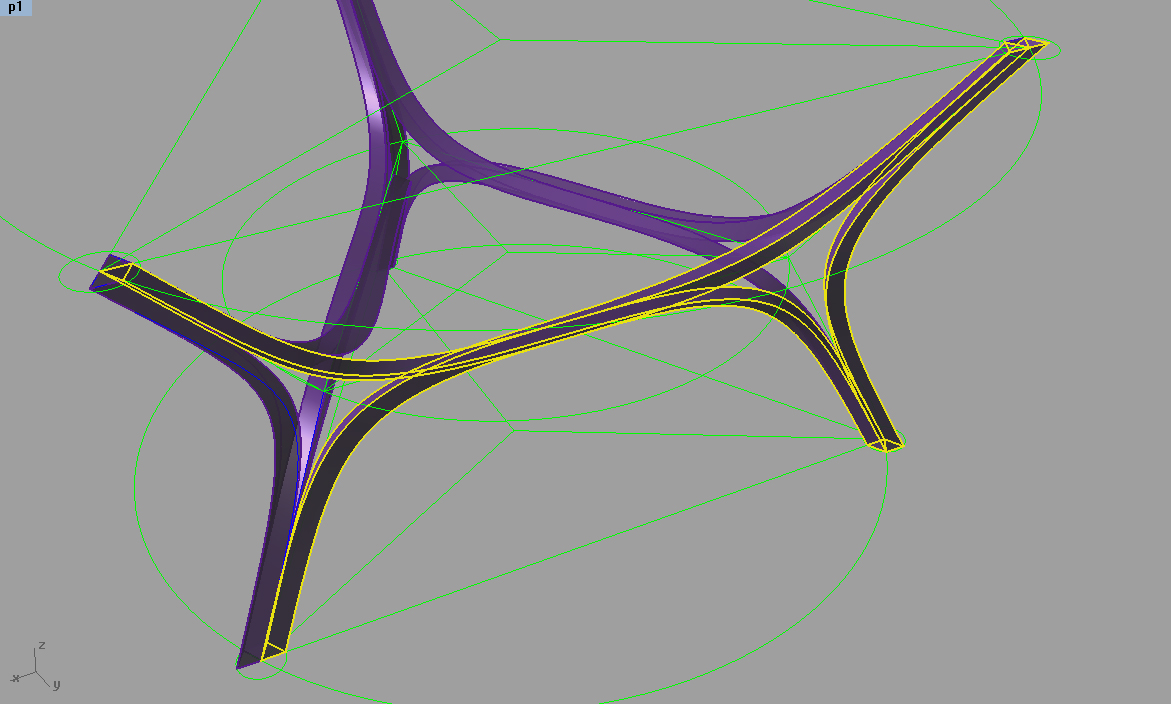

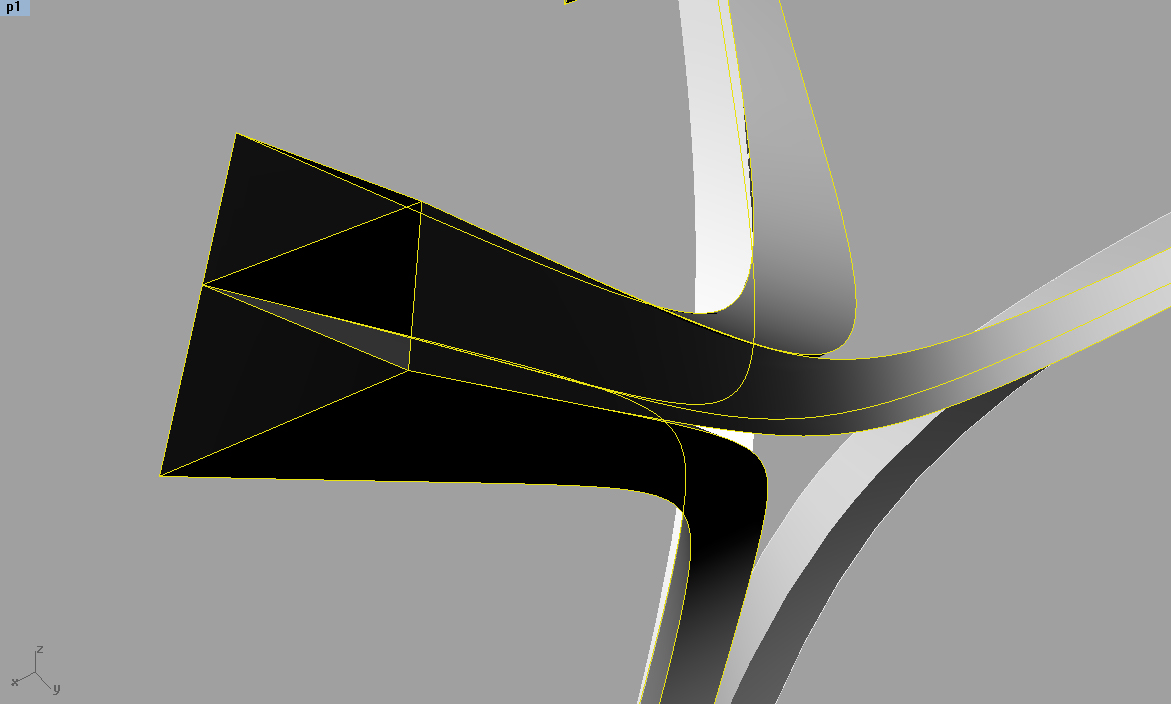

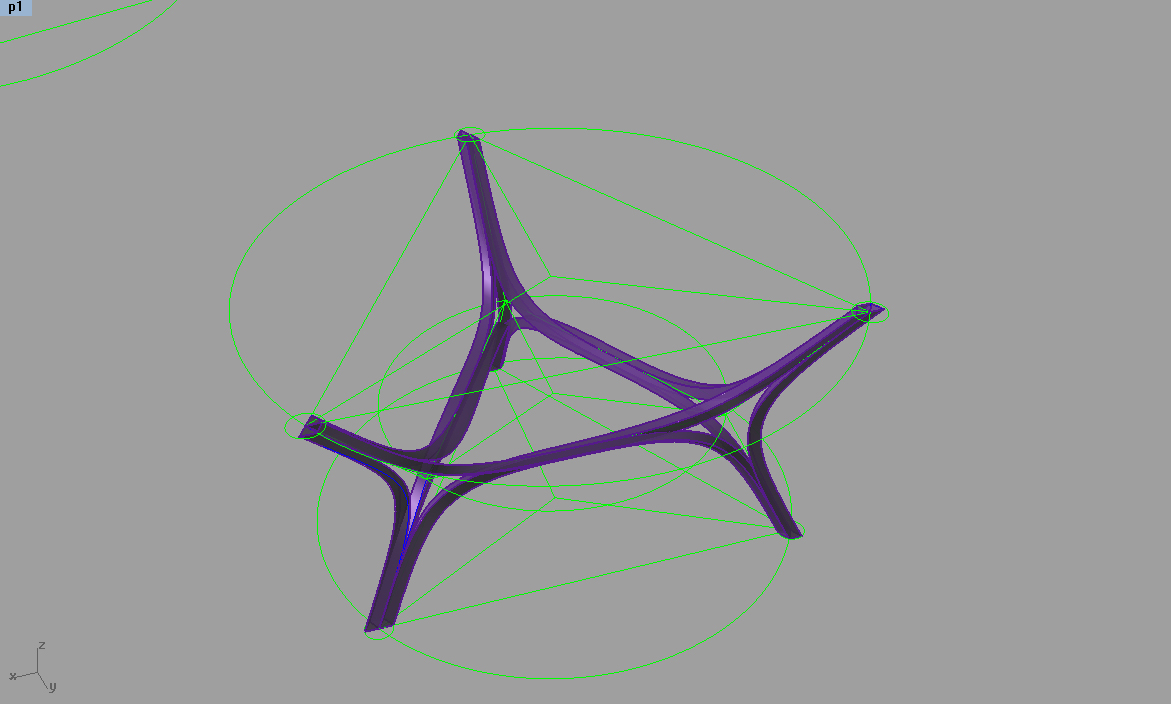

I will meet with Kalle Jönsson in December for a short workshop session around the materials used for both the tabletop and the frame. For the frame I am currently looking at a material that is fabricated to a unique form for each variant of the table, but also put in tension during assembly (like a wicker chair). I am not yet sure what material would be adequate, but for both tabletop and frame, we are possible looking for a recycled material. Images below shows the current stage of development in Rhino, with a final chosen static shape, and the parametric model, which is not yet completed. Before the December workshop I am hoping to finalize also with patterns for fabrication, that will be laser cut in preparation for our material tests.
I will look for a better way of displaying multiple images later on, as slideshow. For now, each stage can be viewed by clicking each image for better resolution.
